| Engine Family | Small Block Mopar 340/360 Extream Duty FSR |
|---|---|
| CID/Ltr | 371/6.1 |
| Bore Inch | 4.06 |
| Bore mm | 103.12 |
| Stroke Inch | 3.58 |
| Stoke mm | 90.93 |
| Rod Length | 6.125 |
| Comp Dist | 1.115 |
| Crown Volume | -6.7cc |
| CR 1 | 11.1 @ 60cc |
| CR 2 | 10.4 @ 65cc |
| CR 3 | 9.9 @ 70cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

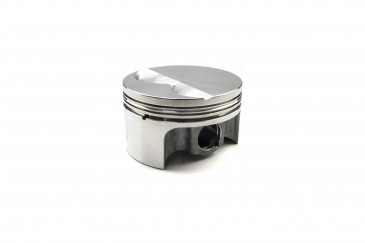

RaceTec, Small Block Mopar 340/360 Extream Duty FSR, Flat Top, two valve reliefs, 4.060 Bore 3.580 Stroke 1.115 Comp HT
