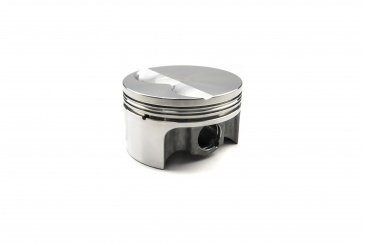

RACETEC SMALL BLOCK FORD 302/351W 20° LIGHT DUTY FSR FORGED PISTON SET #1000962

Part # 1000962

$1,000.00

RaceTec, Small Block Ford 302/351W 20° Light Duty FSR, Flat Top, two valve reliefs, 4.030 Bore 4.100 Stroke 1.250 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Small Block Ford 302/351W 20° Light Duty FSR
CID/Ltr 418/6.8
Bore Inch 4.03
Bore mm 102.36
Stroke Inch 4.1
Stoke mm 104.14
Rod Length 6.2
Comp Dist 1.25
Crown Volume -5cc
CR 1 13.2 @ 58cc
CR 2 12.6 @ 64cc
CR 3 12.0 @ 70cc
Alloy 2618
Weight Call
Pin 0.927
Oil Rails Included N/A
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs

Item# Description
1000962

$1,000.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
