| Engine Family | Small Block Ford 302/351W 20° |
|---|---|
| CID/Ltr | 394/6.5 |
| Bore Inch | 4.035 |
| Bore mm | 102.49 |
| Stroke Inch | 3.85 |
| Stoke mm | 97.79 |
| Rod Length | 6.2 |
| Comp Dist | 1.375 |
| Crown Volume | -5.2cc |
| CR 1 | 12.5 @ 58cc |
| CR 2 | 11.8 @ 64cc |
| CR 3 | 11.3 @ 70cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

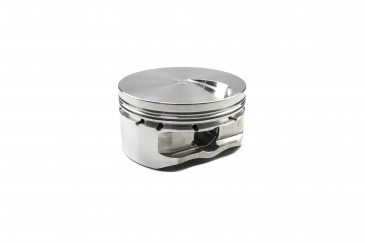

RaceTec, Small Block Ford 302/351W 20°, Dome, 4.035 Bore 3.850 Stroke 1.375 Comp HT
CALL TO ORDER 714-903-4362
Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.
