| Engine Family | Small Block Ford 302/351W 20° |
|---|---|
| CID/Ltr | 347/5.7 |
| Bore Inch | 4.03 |
| Bore mm | 102.36 |
| Stroke Inch | 3.4 |
| Stoke mm | 86.36 |
| Rod Length | 5.4 |
| Comp Dist | 1.1 |
| Crown Volume | -5.2cc |
| CR 1 | 11.1 @ 58cc |
| CR 2 | 10.6 @ 64cc |
| CR 3 | 10.1 @ 70cc |
| Alloy | 2618 |
| Weight | 412 |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

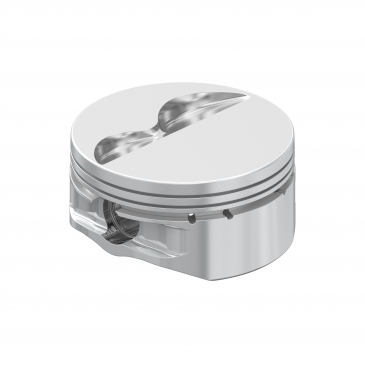

RaceTec, Small Block Ford 302/351W 20°, Dome, 4.030 Bore 3.400 Stroke 1.100 Comp HT
