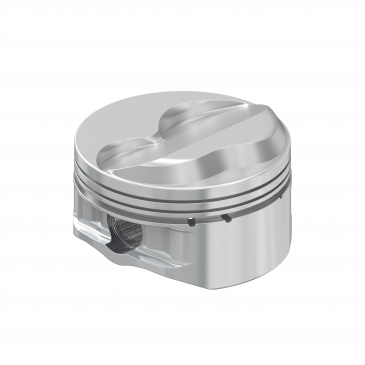

RACETEC SMALL BLOCK FORD 302/351W 20° FORGED PISTON SET #1001341

Part # 1001341

$1,000.00

RaceTec, Small Block Ford 302/351W 20°, Flat Top, two valve reliefs, 4.035 Bore 4.000 Stroke 1.300 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Small Block Ford 302/351W 20°
CID/Ltr 409/6.7
Bore Inch 4.035
Bore mm 102.49
Stroke Inch 4
Stoke mm 101.6
Rod Length 6.2
Comp Dist 1.3
Crown Volume 3cc
CR 1 14.5 @ 58cc
CR 2 13.7 @ 64cc
CR 3 12.9 @ 70cc
Alloy 2618
Weight 479
Pin 0.927
Oil Rails Included Yes
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs

Item# Description
1001341

$1,000.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
