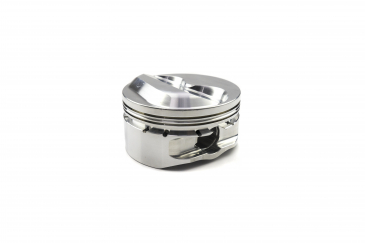

RACETEC SMALL BLOCK CHEVY 23° FORGED PISTON SET #1001404

Part # 1001404

$1,000.00

RaceTec, Small Block Chevy 23°, Dome, 4.125 Bore 3.875 Stroke 1.062 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Small Block Chevy 23°
CID/Ltr 414/6.8
Bore Inch 4.125
Bore mm 104.78
Stroke Inch 3.875
Stoke mm 98.43
Rod Length 6
Comp Dist 1.062
Crown Volume 10.5cc
CR 1 16.0 @ 58cc
CR 2 14.6 @ 64cc
CR 3 13.4 @ 70cc
Alloy 2618
Weight 468
Pin 0.927
Oil Rails Included Yes
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Dome

Item# Description
1001404

$1,000.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
