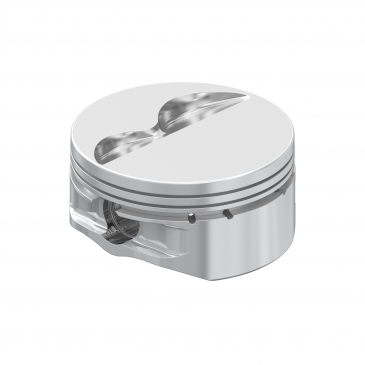

RACETEC SMALL BLOCK CHEVY 23° FORGED PISTON SET #1001027

Part # 1001027

$1,000.00

RaceTec, Small Block Chevy 23°, Flat Top, two valve reliefs, 4.030 Bore 3.750 Stroke 1.000 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Small Block Chevy 23°
CID/Ltr 383/6.3
Bore Inch 4.03
Bore mm 102.36
Stroke Inch 3.75
Stoke mm 95.25
Rod Length 6.125
Comp Dist 1
Crown Volume -4.5cc
CR 1 11.9 @ 58cc
CR 2 11.1 @ 64cc
CR 3 10.4 @ 70cc
Alloy 2618
Weight 386
Pin 0.927
Oil Rails Included Yes
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs

Item# Description
1001027

$1,000.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
