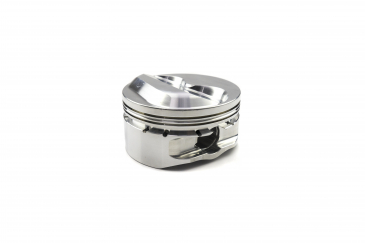

RACETEC SMALL BLOCK CHEVY 18° FORGED PISTON SET #1001154

Part # 1001154

$1,000.00

RaceTec, Small Block Chevy 18°, Dome, 4.145 Bore 3.875 Stroke 1.062 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Small Block Chevy 18°
CID/Ltr 418/6.8
Bore Inch 4.145
Bore mm 105.28
Stroke Inch 3.875
Stoke mm 98.43
Rod Length 6
Comp Dist 1.062
Crown Volume 1.7cc
CR 1 15.4 @ 52cc
CR 2 14.7 @ 55cc
CR 3 14.1 @ 58cc
Alloy 2618
Weight 449
Pin 0.927
Oil Rails Included Yes
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Dome

Item# Description
1001154

$1,000.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
