| Engine Family | Big Block Ford AFR 14°, KAASE P-51, SCJ & SR-71 |
|---|---|
| CID/Ltr | 509/8.3 |
| Bore Inch | 4.42 |
| Bore mm | 112.27 |
| Stroke Inch | 4.15 |
| Stoke mm | 105.41 |
| Rod Length | 6.8 |
| Comp Dist | 1.425 |
| Crown Volume | -7cc |
| CR 1 | 12.6 @ 70cc |
| CR 2 | 12.0 @ 75cc |
| CR 3 | 10.9 @ 85cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.99 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

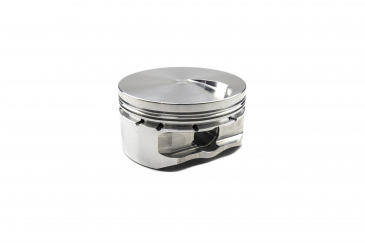

RaceTec, Big Block Ford AFR 14°, KAASE P-51, SCJ & SR-71, Dome, 4.420 Bore 4.15 Stroke 1.425 Comp HT
CALL TO ORDER 714-903-4362
