| Engine Family | Big Block Chevy 24° |
|---|---|
| CID/Ltr | 467/7.7 |
| Bore Inch | 4.31 |
| Bore mm | 109.47 |
| Stroke Inch | 4 |
| Stoke mm | 101.6 |
| Rod Length | 6.385 |
| Comp Dist | 1.395 |
| Crown Volume | 41.7cc |
| CR 1 | 13.1 @ 112cc |
| CR 2 | 12.0 @ 118cc |
| CR 3 | 11.2 @ 124cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.99 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, one valve relief |

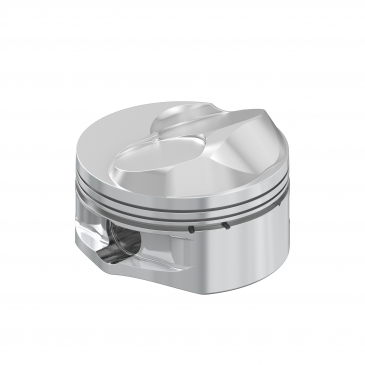

RaceTec, Big Block Chevy 24°, Flat Top, one valve relief, 4.310 Bore 4.000 Stroke 1.395 Comp HT
CALL TO ORDER 714-903-4362
