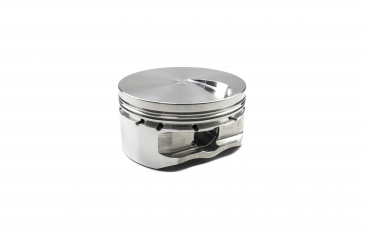

RACETEC BIG BLOCK CHEVY 24° FORGED PISTON SET #1001251

Part # 1001251

$1,000.00

RaceTec, Big Block Chevy 24°, Dish, 4.560 Bore 4.000 Stroke 1.645 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Big Block Chevy 24°
CID/Ltr 522/8.6
Bore Inch 4.56
Bore mm 115.82
Stroke Inch 4
Stoke mm 101.6
Rod Length 6.135
Comp Dist 1.645
Crown Volume -3cc
CR 1 9.6 @ 112cc
CR 2 9.1 @ 118cc
CR 3 8.7 @ 124cc
Alloy 2618
Weight Call
Pin 0.99
Oil Rails Included N/A
Top Ring 1/16"
2nd Ring 1/16"
Oil Ring HT 3/16"
Piston Style Dish

Item# Description
1001251

$1,000.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume


REVIEWS


Appearance
Installation
Price / Value
Quality
Average Rating: 0 of 5
