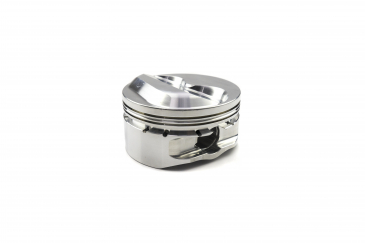

AUTOTEC SMALL BLOCK FORD 351 CLEVELAND FORGED PISTON SET #1000516

Part # 1000516

$663.00

AutoTec, Small Block Ford 351 Cleveland, Flat Top, two valve reliefs, 4.030 Bore 3.750 Stroke 1.200 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Small Block Ford 351 Cleveland
CID/Ltr 383/6.3
Bore Inch 4.03
Bore mm 102.36
Stroke Inch 3.75
Stoke mm 95.25
Rod Length 6.125
Comp Dist 1.2
Crown Volume -3cc
CR 1 11.5 @ 60cc
CR 2 10.2 @ 64cc
CR 3 9.5 @ 72cc
Alloy 4032
Weight 457
Pin 0.927
Oil Rails Included N/A
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs

Item# Description
1000516

$663.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
