| Engine Family | Small Block Chevy Nostalgia 283/302/327 |
|---|---|
| CID/Ltr | 306/5.0 |
| Bore Inch | 4.03 |
| Bore mm | 102.36 |
| Stroke Inch | 3 |
| Stoke mm | 76.2 |
| Rod Length | 5.7 |
| Comp Dist | 1.8 |
| Crown Volume | -5cc |
| CR 1 | 9.7 @ 58cc |
| CR 2 | 9.0 @ 64cc |
| CR 3 | 8.3 @ 70cc |
| Alloy | 4032 |
| Weight | 563 |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

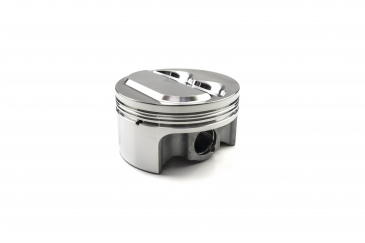

AutoTec, Small Block Chevy Nostalgia 283/302/327, Flat Top, two valve reliefs, 4.030 Bore 3.000 Stroke 1.800 Comp HT
CALL TO ORDER 714-903-4362
