| Engine Family | Small Block Chevy 23° 4.000" |
|---|---|
| CID/Ltr | 383/6.3 |
| Bore Inch | 4.03 |
| Bore mm | 102.36 |
| Stroke Inch | 3.75 |
| Stoke mm | 95.25 |
| Rod Length | 5.85 |
| Comp Dist | 1.285 |
| Crown Volume | -5cc |
| CR 1 | 11.9 @ 58cc |
| CR 2 | 11.0 @ 64cc |
| CR 3 | 10.3 @ 70cc |
| Alloy | 4032 |
| Weight | 454 |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

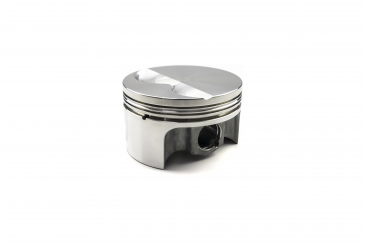

AutoTec, Small Block Chevy 23° 4.000", Flat Top, two valve reliefs, 4.030 Bore 3.750 Stroke 1.285 Comp HT
CALL TO ORDER 714-903-4362
