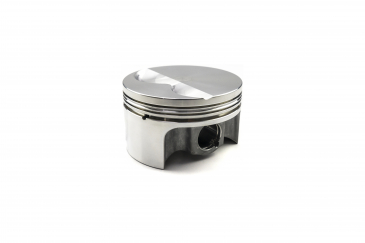

AUTOTEC OLDSMOBILE 455 FORGED PISTON SET #1000586

Part # 1000586

$736.00

AutoTec, Oldsmobile 455, Flat Top, two valve reliefs, 4.185 Bore 4.250 Stroke 1.750 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Oldsmobile 455
CID/Ltr 468/7.7
Bore Inch 4.185
Bore mm 106.3
Stroke Inch 4.25
Stoke mm 107.95
Rod Length 6.735
Comp Dist 1.75
Crown Volume -5cc
CR 1 12.3 @ 72cc
CR 2 11.3 @ 80cc
CR 3 10.6 @ 84cc
Alloy 4032
Weight 587
Pin 0.98
Oil Rails Included N/A
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs

Item# Description
1000586

$736.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
