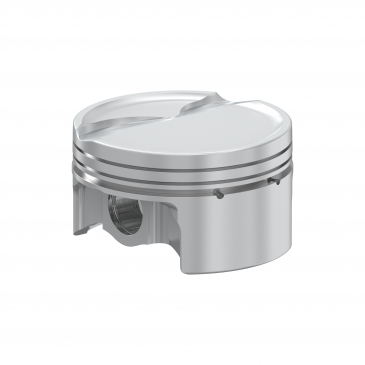

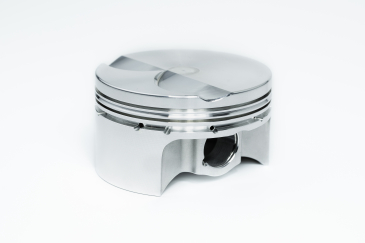

AUTOTEC LS/LS7 COMBO POCKET FORGED PISTON SET #1001685

Part # 1001685

$933.00

AutoTec, LS/LS7 Combo Pocket, Dish, 3.898 Bore 3.622 Stroke 1.304 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family LS/LS7 Combo Pocket
CID/Ltr 346/5.7
Bore Inch 3.898
Bore mm 99.01
Stroke Inch 3.622
Stoke mm 92
Rod Length 6.125
Comp Dist 1.304
Crown Volume -6.1cc
CR 1 10.0 @ 64cc
CR 2 9.5 @ 66cc
CR 3 9.3 @ 70cc
Alloy 2618
Weight Call
Pin 0.927
Oil Rails Included N/A
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Dish

Item# Description
1001685

$933.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
