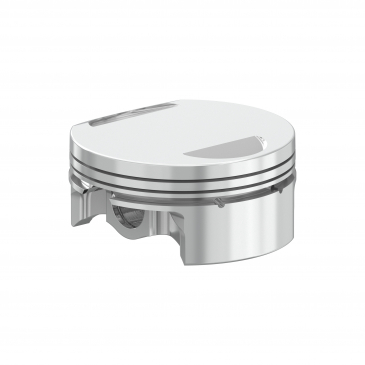

AUTOTEC GEN 3 HEMI FORGED PISTON SET #1001570

Part # 1001570

$933.00

AutoTec, Gen 3 Hemi, Flat Top, two valve reliefs, 4.090 Bore 3.580 Stroke 1.295 Comp HT

CALL TO ORDER  714-903-4362


Specifications

Engine Family Gen 3 Hemi
CID/Ltr 376/6.2
Bore Inch 4.09
Bore mm 103.89
Stroke Inch 3.58
Stoke mm 90.93
Rod Length 6.2
Comp Dist 1.295
Crown Volume -6cc
CR 1 10.5 @ 65cc
CR 2 9.5 @ 74cc
CR 3 8.5 @ 85cc
Alloy 2618
Weight Call
Pin 0.945
Oil Rails Included N/A
Top Ring 1.2mm
2nd Ring 1.2mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs

Item# Description
1001570

$933.00


compression calculator

Please fill in the details below to calculate the compression ratio for your engine. Accurate inputs will give the best results. Once you’ve filled out the form, click “Calculate” to see your engine's compression ratio.

dome volume to compression ratio


compression ratio to dome volume
