| Engine Family | Gen 3 Hemi |
|---|---|
| CID/Ltr | 366/6.0 |
| Bore Inch | 3.917 |
| Bore mm | 99.49 |
| Stroke Inch | 3.795 |
| Stoke mm | 96.39 |
| Rod Length | 6.125 |
| Comp Dist | 1.23 |
| Crown Volume | -5.7cc |
| CR 1 | 10.5 @ 65cc |
| CR 2 | 9.5 @ 74cc |
| CR 3 | 8.5 @ 85cc |
| Alloy | 2618 |
| Weight | Call |
| Pin | 0.927 |
| Oil Rails Included | N/A |
| Top Ring | 1.2mm |
| 2nd Ring | 1.2mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

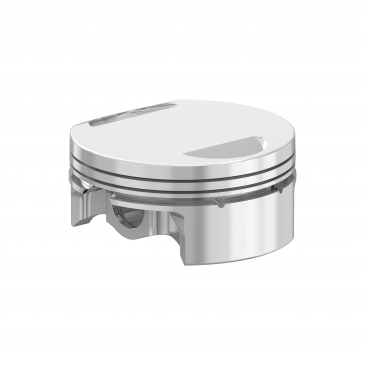

AutoTec, Gen 3 Hemi, Flat Top, two valve reliefs, 3.917 Bore 3.795 Stroke 1.230 Comp HT
CALL TO ORDER 714-903-4362
