| Engine Family | Gen 3 Hemi |
|---|---|
| CID/Ltr | 349/5.7 |
| Bore Inch | 3.94 |
| Bore mm | 100.08 |
| Stroke Inch | 3.58 |
| Stoke mm | 90.93 |
| Rod Length | 6.243 |
| Comp Dist | 1.22 |
| Crown Volume | 9cc |
| CR 1 | 12.0 @ 65cc |
| CR 2 | 10.8 @ 74cc |
| CR 3 | 9.4 @ 85cc |
| Alloy | 4032 |
| Weight | 439 |
| Pin | 0.945 |
| Oil Rails Included | N/A |
| Top Ring | 1.2mm |
| 2nd Ring | 1.2mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

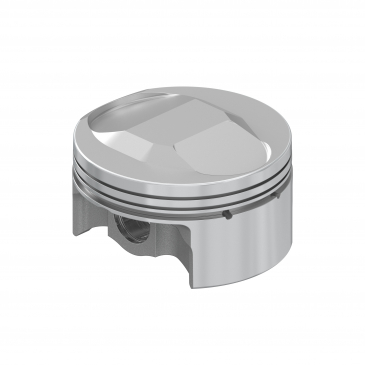

AutoTec, Gen 3 Hemi, Dome, 3.940 Bore 3.580 Stroke 1.220 Comp HT
