| Engine Family | Ford FE |
|---|---|
| CID/Ltr | 416/6.8 |
| Bore Inch | 4.08 |
| Bore mm | 103.63 |
| Stroke Inch | 3.98 |
| Stoke mm | 101.09 |
| Rod Length | 6.49 |
| Comp Dist | 1.67 |
| Crown Volume | -5cc |
| CR 1 | 10.8 @ 68cc |
| CR 2 | 10.4 @ 72cc |
| CR 3 | 9.3 @ 76cc |
| Alloy | 4032 |
| Weight | 561 |
| Pin | 0.975 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Flat Top, two valve reliefs |

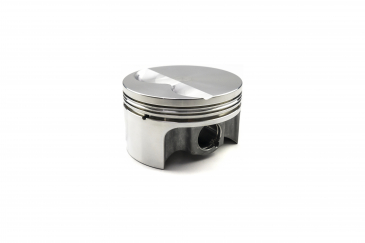

AutoTec, Ford FE, Flat Top, two valve reliefs, 4.080 Bore 3.980 Stroke 1.670 Comp HT
CALL TO ORDER 714-903-4362
