| Engine Family | Big Block Chevy 24° |
|---|---|
| CID/Ltr | 460/7.5 |
| Bore Inch | 4.28 |
| Bore mm | 108.71 |
| Stroke Inch | 4 |
| Stoke mm | 101.6 |
| Rod Length | 6.385 |
| Comp Dist | 1.395 |
| Crown Volume | 46.1cc |
| CR 1 | 13.3 @ 112cc |
| CR 2 | 12.5 @ 118cc |
| CR 3 | 11.8 @ 124cc |
| Alloy | 4032 |
| Weight | 646 |
| Pin | 0.99 |
| Oil Rails Included | N/A |
| Top Ring | 1.5mm |
| 2nd Ring | 1.5mm |
| Oil Ring HT | 3.0mm |
| Piston Style | Dome |

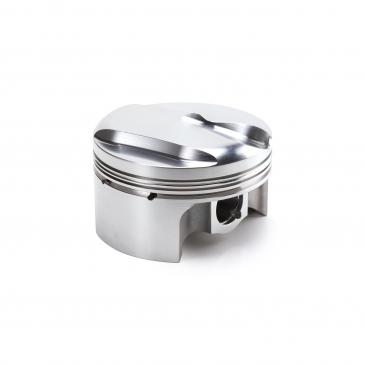

AutoTec, Big Block Chevy 24°, Dome, 4.280 Bore 4.000 Stroke 1.395 Comp HT
