| Engine Family | 318 Poly |
|---|---|
| CID/Ltr | 323/5.3 |
| Bore Inch | 3.94 |
| Bore mm | 100.08 |
| Stroke Inch | 3.313 |
| Stoke mm | 84.15 |
| Rod Length | 6.123 |
| Comp Dist | 1.8 |
| Crown Volume | -1.6cc |
| CR 1 | 9.2 @ 70cc |
| CR 2 | 8.7 @ 75cc |
| CR 3 | |
| Alloy | 4032 |
| Weight | Call |
| Pin | 0.984 |
| Oil Rails Included | N/A |
| Top Ring | 1/16" |
| 2nd Ring | 1/16" |
| Oil Ring HT | 3/16" |
| Piston Style | Flat Top, two valve reliefs |

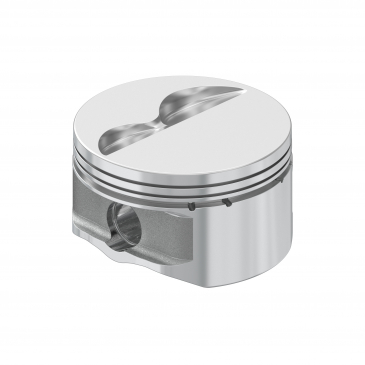

AutoTec, 318 Poly, Flat Top, two valve reliefs, 3.940 Bore 3.313 Stroke 1.800 Comp HT
CALL TO ORDER 714-903-4362
